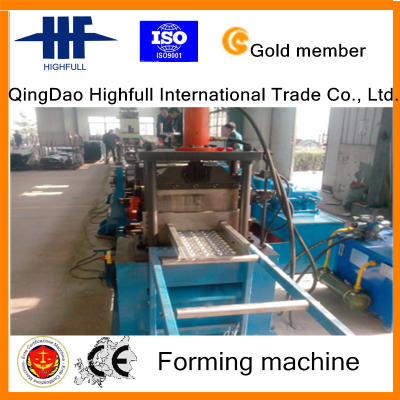

Galvanized steel springboard roll forming machine
This production line may produce thesteelspringboard, the different sizes through the replace punching moulds to complete. Forming machine is combined and adjustable, one set of combined rollers complete all steelspringboard products, the change size through adjust distance of rollers to complete.
1. The chart of process flow:
Decoiling--levelling--feeding---punching---forming---measuring lengh---product to stand
2. Main equipment:
Decoiler, main forming machine, hydraulic cutting, electric system(PLC), hydraulic system, product stand.
 decoiler
Usage:It is used to support the steel coil and uncoil it in a turnable way.
Passive uncoil pulled by roll forming system
Loading capacity <5T
Uncoiling width 500mm(according to the profile)
Inner diameter: 480-530mm
the width of mild steel:<800mm
the expanding range of inner decoiler:50mm
the max outer diameter:1200mm
the thickness of material:1.0-2.0mm
levelling and feeding
Usage:Put the raw material(steel plate) through the beach to manufacture and process,4 down and 3 up , it can guarantee that the products are neat, parallel and everything is uniformity.
Material of axis 40Cr
Number 3 up,4 down
Diameter of axis 95mm
Forming round Material bearing steel (GR15), quenching 60-62 °C
3. Technical parameters
1). Profile thickness: 1.0-2.0mm
3). Main forming machine
A. Shaft material: 40Cr, bearing steel outer diameter 80mm
B. Main motor power: 22kw
C. Forming speed: 8--10m/min
D. Voltage: 380v, 50Hz
E. Roller station: 22 steps
4). Cutting system
A. Hydraulic cutter
B. Blade and mould material: Cr12 steel with quenched treated 60-62°
C. Cutting system advanced hydraulic drive, after automatic cutting after forming.
5). Control system
A. PLC
B. Coder
6). Hydraulic system
A. Power: 3kw
4. Spare Parts
1). Easy damaged parts: Conk 2 PCS, fuse-link 4 PCS
2). Rubber mat 1 PCS;
3). Bolt spanner 1 PCS
Terms:
1. Delivery: According to customers' requirement
2. Package: Export standard package for container
3. Payment: TT (30% by TT in advance, 70% by TT after you inspect machine we need)
4. Delivery date: Within 30 working days after receiving deposit
5. Products Warranty: 12 month, and we will provide the technical support for whole life of the equipment.
  FAQ
What is main parameters?
1.Gear box and universal joint drive.
2.PLC control.
Is the sample available?
Yes,sample are available for you to test the quality.
Are the products tested before shipping?
All the products have to pass strict inspection before they go out.
Why choose us?
1.We are a factory manufacturing ,best production capability,best quality control,best service.
2.competitive price.
3.Best after-sale service.
4.Different types of roll forming machine,customers' own design is OK.
5.Super High quality.
6.Big production ability.
What is benefit will you bring?
Your client satisfied on the quality.
Your client continued orders.
You can get good reputation from your market and obtain more orders.
