- Size: 32*5*3.5m
- Place of Origin: Shandong
- Brand Name: highfull
- Model Number: highfull
- Weight: 80000.000 kg
Equipment structure:
De-coiler --- Leveling--- Punching device --- Roll forming --- cutting-to-length --- collection table

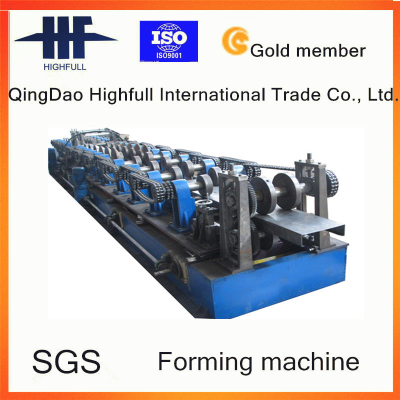

Full Automatic C Purlin Roll Forming Machine,forming machine
Product Description
Equipment structure:
De-coiler --- Leveling--- Punching device --- Roll forming --- cutting-to-length --- collection table
Technique data:
1, Coil width: 100-500mm,
2, Coil thickness: 1.0-3.0mm
3, Production speed: 0-15m/min
4, Total power: About 30kw
5, Operation area: Length 18m x width 3m
6, Power: 380V/415V, 50Hz
| Name | unit | parameter | remark | |
| Suitable raw materials | Type |
| Mild steel, galvanized sheet |
|
Plate strength | Map | ≥350 |
| ||
Plate thickness | mm | 1~3 |
| ||
2 | specification | mm | |
| |
3 | speed | m/min | 6~8 |
| |
4 | Material of the roller |
| GCr15,Hardening treatment |
| |
5 | drive type |
| Cast steel frame, |
| |
6 | power | kw | About 30 |
| |
7 | Electrical control system |
| PCL frequency control |
| |
8 | Size(lengthXwidthXheight) | m | 25X4X3.9 |
| |
Warranty
1).12 months after the shipping date, and we will provide the technical support for the whole life.
2). Trainning: the buyer should charge of visa, return ticket, food and accommodation overseas and USD60/person/day for salary.
3). Need one technicians.
4). Training time: one week (contains the time of installation and adjustment).
