- Size: 210
- Place of Origin: Qingdao
- Brand Name: highfull
- Model Number: highfull
- Weight: 15000.000 kg

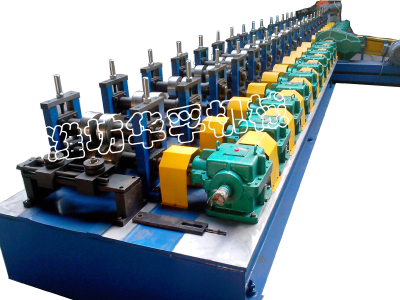

Solar Bracket Forming machine With CE Certifications
Process Flow:
Uncoiler--levelling---feeding----punching---roll forming ---cutting--- out table
Main Forming Machine:
Decoiler, forming, hydraulic cutting, PLC , hydraulic system, product stand table
uncoiler
Usage:It is used to support the steel coil and uncoil it in a turnable way.
Passive uncoil pulled by roll forming system
Loading capacity | 5T |
| Uncoiling width | 480mm(according to the profile) |
| Inner diameter: | 450-550mm |
feeding
Usage:Put the raw material(steel plate) through the beach to manufacture and process,4 down and 3 up , it can guarantee that the products are neat, parallel and everything is uniformity.
| Material of axis | 45#steel |
| Number | 3 up,4 down |
| Diameter of axis | 95mm |
| Forming round | Material bearing steel (GR15), quenching 60-62 °C |
Main technical parameter
forming steps:22steps
forming speed:20M/min
roll thickness:2.5mm
Main power:50Kw
Our Survices:
Meeting clients' diversified requirements on machines.
High quality machine with reasonable price.
Guaranteeing the quality of machine we providing.
Every process will be checked by responsible QC which insures every product's quality.
Professional packing teams which keep every packing safely.
Trial order can be done in one week.
Samples can be provided as your requirements.
- Size: 210
- Place of Origin: Qingdao
- Brand Name: highfull
- Model Number: highfull
- Weight: 15000.000 kg
C Channel Roll Forming Machinery with CE certification
Process Flow:
decoiler--levelling---feeding---punching----roll forming ---cutting---out table
Main Forming Machine:
Decoiler, forming, hydraulic cutting, PLC , hydraulic system, product stand table
uncoiler
Usage:It is used to support the steel coil and uncoil it in a turnable way.
Passive uncoil pulled by roll forming system
feeding
Usage:Put the raw material(steel plate) through the beach to manufacture and process,4 down and 3 up , it can guarantee that the products are neat, parallel and everything is uniformity.
Main technical parameter
forming steps:22steps
forming speed:20m/min
roll thickness:2-2.5mm
Main power:50Kw
Terms:
1. Delivery: According to customers' requirement.
2. Package: Export standard package for container.
3. Payment: TT (30% by TT in advance, 70% by TT after you inspect machine we need).
4. Delivery date: Within 30 working days after receiving deposit.
5. Products Warranty: 12 month, and we will provide the technical support for whole life of the
equipment.
This product is very popular in our country.The forming speed up to 20 meters.It is very quickly.
