- Size: 32*5*3.5m
- Place of Origin: Shandong
- Brand Name: highfull
- Model Number: highfull
- Weight: 80000.000 kg

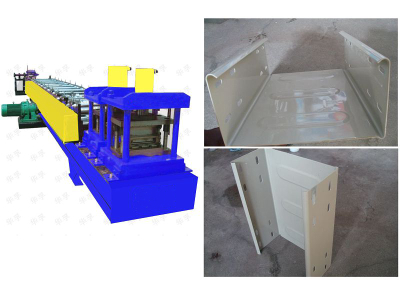

PLC Automatic Cable Tray Roll Forming Machine
This production line may produce the cable tray, the different sizes through the replace punching moulds to complete. Forming machine is combined and adjustable, one set of combined rollers complete all cable tray products, the change size through adjust distance of rollers to complete.
The whole equipment consists of decoiler, ML-900 flatting device, servo feeding, JF21-200B punching, punching dies, guider, forming machine, cut-to-length device, collection table and electrical control.
Production processing
Decoiler---flatting---feeding & punching---roll forming ---cut-to-length---collection table.
Decoiler
Usage:It is used to support the steel coil and uncoil it in a turnable way.
Passive uncoil pulled by roll forming system
Loading capacity | 5T |
Uncoiling width | 450mm(according to the profile) |
Inner diameter: | 450-550mm |
feeding & punchine
Usage:Put the raw material(steel plate) through the beach to manufacture and process,4 down and 3 up , it can guarantee
that the products are neat, parallel and everything is uniformity.
Material of axis | 45#steel |
Number | 3 up,4 down |
Diameter of axis | 100mm |
Forming round | Material bearing steel (GR15), quenching 60-62 °C |
main equipment
S. N | equipment name | Quantity | Weight |
1 | hydraulic decoiler | 1 set | 5T |
2 | leveling machine | 1 set | 2T |
3 | servo feeding device | 1 set | 1T |
4 | punching machine | 1 set | 31T |
5 | main roll forming machine | 1 set | 28T |
6 | hydraulic cutting machine | 1 set | 1.5T |
7 | control system | 1 set | 0.1T |
8 | out tables | 2 units | 1T |
9 | spare part | 1 package | 0.1T |
Equipment capacity
1, The production line can produce many sizes of cable tray according to producing requirement. (material steel width 100mm≤ § ≤ 600mm)
2, Line speed: 2.5-5M/min
3, Continuous forming speed: 10-15M/min
4, Steel thickness: 1-2.5mm
5, Material: Mild steel, galvanized steel coil
6, The production line divide into two operations: Automatic &handle. It can work with linkage and subsection.
. NO | Project | Unit | Paremeter | Remark | |
| Material | Type |
| Mild steel Galvanized sheet |
|
|
| Strength of material sheet | Map | ≥350 |
|
|
| Thickness of material sheet | mm | 1.2~3.0 |
|
2 | Size of production | mm | Reference the picture |
| |
3 | Production speed | m/min | Forming peed 10m/min |
| |
4 | Material of roller |
| GCr15 quenching treatment |
| |
5 | Drive type |
| Gear box |
| |
6 | Power | kw | About 41 |
| |
7 | Electric control system |
| PLC variable frequency control |
| |
8 | Dimensions(Length*width*height) | m | 25X4X3.9 | ||
Terms:
1. Delivery: According to customers' requirement.
2. Package: Export standard package for container.
3. Payment: TT (30% by TT in advance, 70% by TT after you inspect machine we need).
4. Delivery date: Within 30 working days after receiving deposit.
5. Products Warranty: 12 month, and we will provide the technical support for whole life of the equipment.
FAQ
What is main parameters?
1.Gear box and universal joint drive.
2.PLC control.
Is the sample available?
Yes,sample are available for you to test the quality.
Are the products tested before shipping?
All the products have to pass strict inspection before they go out.
Why choose us?
1.We are a factory manufacturing ,best production capability,best quality control,best service.
2.competitive price.
3.Best after-sale service.
4.Different types of roll forming machine,customers' own design is OK.
5.Super High quality.
6.Big production ability.
What is benefit will you bring?
Your client satisfied on the quality.
Your client continued orders.
You can get good reputation from your market and obtain more orders.
Where is your factory located?How can I visit there?
Our factory is located in Weifang, Shangdong province.We could pick you up from Weifang station or Qingdao airport when you come.
