- Size: 32*5*3.5m
- Place of Origin: Shandong
- Brand Name: highfull
- Model Number: highfull
- Weight: 80000.000 kg
Detailed Product Desciption
our product has the feasure of
1. Nice appearance
2. High efficiency
3. Low noize and high quality.
4. Easy control.
Process Flow:
Uncoiler--levelling---feeding----roll forming ---roll forming---correction--cutting out table

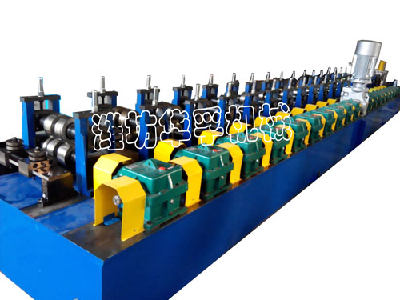

Main Forming Machine:
Decoiler, forming, hydraulic cutting, PLC , hydraulic system, product stand table
uncoiler
Usage:It is used to support the steel coil and uncoil it in a turnable way.
Passive uncoil pulled by roll forming system
Loading capacity | 5T |
Uncoiling width | 450mm(according to the profile) |
Inner diameter: | 450-550mm |
feeding
Usage:Put the raw material(steel plate) through the beach to manufacture and process,4 down and 3 up , it can guarantee
that the products are neat, parallel and everything is uniformity.
Material of axis | 45#steel |
Number | 3 up,4 down |
Diameter of axis | 100mm |
Forming round | Material bearing steel (GR15), quenching 60-62 °C |
Main technical parameter
forming steps:18-22steps
forming speed:6-20M/min
roll thickness:2.5mm
Main power:45Kw
FAQ
What is main parameters?
1.Gear box and universal joint drive.
2.PLC control.
Is the sample available?
Yes,sample are available for you to test the quality.
Are the products tested before shipping?
All the products have to pass strict inspection before they go out.
Why choose us?
1.We are a factory manufacturing ,best production capability,best quality control,best service.
2.competitive price.
3.Best after-sale service.
4.Different types of roll forming machine,customers' own design is OK.
5.Super High quality.
6.Big production ability.
What is benefit will you bring?
Your client satisfied on the quality.
Your client continued orders.
You can get good reputation from your market and obtain more orders.
Our Survices:
Meeting clients' diversified requirements on machines.
High quality machine with reasonable price.
Guaranteeing the quality of machine we providing.
Every process will be checked by responsible QC which insures every product's quality.
Professional packing teams which keep every packing safely.
Trial order can be done in one week.
Samples can be provided as your requirements.
Terms:
1. Delivery: According to customers' requirement
2. Package: Export standard package for container
3. Payment: TT (30% by TT in advance, 70% by TT after you inspect machine we need)
4. Delivery date: Within 30 working days after receiving deposit
5. Products Warranty: 12 month, and we will provide the technical support for whole life of the equipment.
